GstarCAD Architecture

GstarCAD Architecture

GstarCAD Architecture is available to customers in 2D AND 3D version.

GstarCAD Architecture uses associative and parametric building components to create construction plan drawings based on custom object technologies. 2D and 3D drawings are generated synchronously to satisfy not only the demand of construction drawing but also the 3D visualisation of building.

GstarCAD Architecture benefits:

• Innovative Functions, e.g Wall linkage and Bay-window
• Intelligent Operation, can improve work effiency. By using custome object technologies, display relation between different objects is processed correctly and automatically without any additional edit.
• My Cloud allowing to drawings to be opened and handled from DWG FastView
• Different styled architecture objects, e.g. walls, doors, stairs and roofs

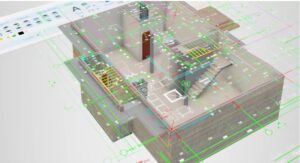

• All buildings drawn are able to be displayed in a 3D model synchronously
• Dimension & Symbol, users can quickly and easily complete dimensioning of wall, door, windows etc. It’s also very convienient to insert symbols such as arrows or elvation symbols etc

Information

GstarCAD 2024 Products Comparison Brochure
GstarCAD Architecture Video


Purchase

A 30-day free trial for GstarCAD software is available
GstarCAD Architecture ANNUAL SUBSCRIPTION
GstarCAD Architecture PERPETUAL
